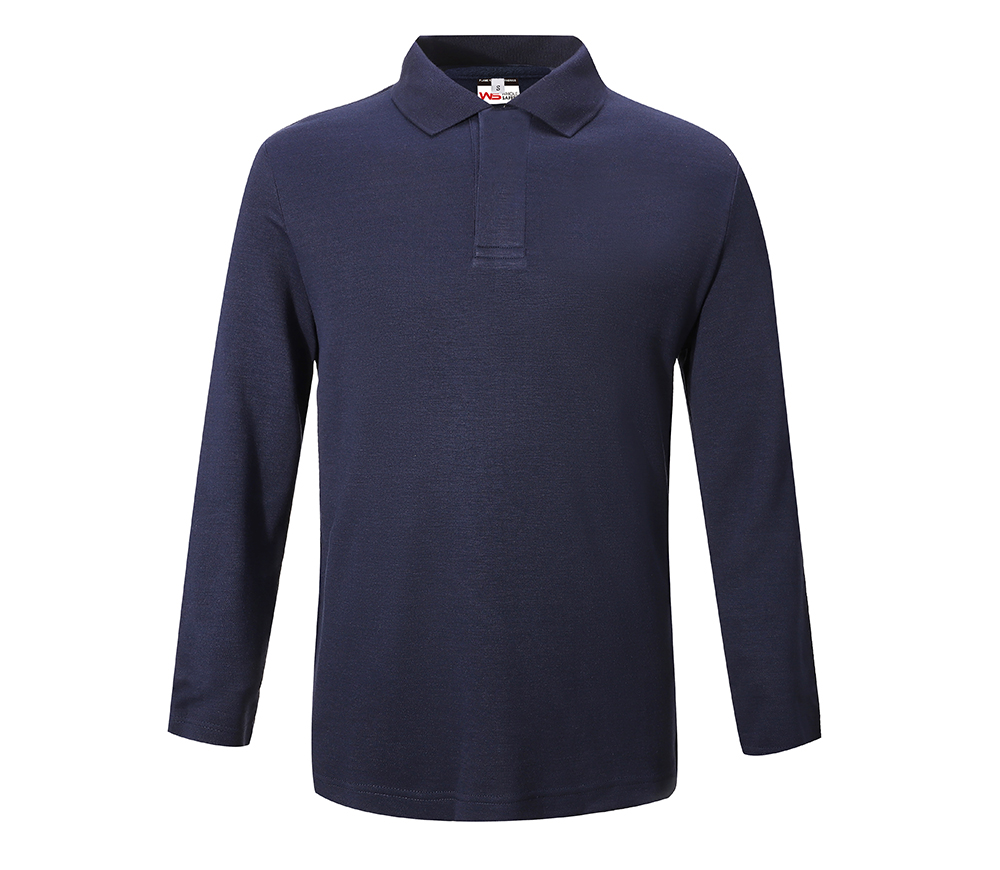

How Does Wholesafety-PPE’s Arc Flash Garment Ensure Safety?

Understanding Arc Flash Hazards and the Critical Role of arc flash garment

The Science Behind Arc Flash Incidents and Thermal Exposure

When an arc flash happens, it releases energy at temperatures above 35,000 degrees Fahrenheit within just a quarter of a second. That's actually about four times hotter than what we see on the surface of our sun according to OSHA data from 2024. What makes these incidents so dangerous? Well, they basically melt metal right away, create massive shock waves that can hit around 1,100 pounds per square foot, and throw out UV radiation strong enough to damage eyesight permanently. Regular fires spread differently compared to arc flashes because these electrical explosions travel through ionized air instead. So workers don't need to be touching something directly to get hurt they just need to be nearby when one occurs.

Why arc flash garment is Critical in High-Risk Electrical Environments

Flame resistant clothing for arc flash protection works differently than regular gear. Instead of catching fire when exposed to intense heat, these specialized garments char instead, which helps them absorb and spread out the thermal energy before it can cause serious damage. This is especially important because many synthetic materials tend to melt onto skin during electrical incidents, leading to worse injuries. Research conducted by various safety organizations shows that workers wearing correctly rated protective equipment face an 83% lower risk of suffering second degree burns in high voltage situations (above 480 volts) compared to those relying on basic flame resistant apparel. These findings highlight why proper gear selection matters so much in industrial settings where electrical hazards are common.

Key Data: OSHA Reports on Arc Flash Injuries and Prevention Gaps

OSHA’s 2024 National Safety Review documents over 2,100 preventable arc flash injuries annually, with 70% linked to incorrect PPE category selection. Major failure points include:

These findings highlight the necessity for arc-rated garments with accurate ATPV/EBT ratings and full-body coverage–core requirements under NFPA 70E-2024.

Compliance with NFPA 70E and OSHA Standards for arc flash garment Safety

How Wholesafety-PPE Aligns with "nfpa 70e standards for electrical safety"

Wholesafety-PPE designs arc flash systems that exceed NFPA 70E’s minimum arc thermal performance value (ATPV) thresholds, offering protection up to 40 cal/cm². By combining moisture-wicking base layers with arc-rated outer shells, their products meet OSHA 29 CFR 1910.269’s mandate for full-body flame-resistant coverage in electrical hazard zones.

Breakdown of "nfpa 70e arc flash ppe categories and required protective gear"

NFPA 70E establishes four PPE categories based on incident energy levels:

These standards require ATPV-tested materials and annual reassessment of workplace hazards.

Integration of "osha regulations on arc flash clothing" and Industry Best Practices

The 2023 OSHA guidance document mandates arc flash risk assessments for any environment exceeding 1.2 cal/cm² before worker entry. Wholesafety-PPE supports compliance by pre-labeling garments with ATPV/EBT values and training teams on NFPA 70E’s updated boundary calculations.

Controversy Analysis: Misinterpretations of PPE Category Classifications

A common error is using Category 2 garments for Category 3 tasks, which OSHA identifies as a factor in 19% of non-fatal arc flash injuries (2023 data). NFPA 70E now clarifies that layered systems must be tested as ensembles–individual component ratings alone do not ensure adequate protection.

Material Integrity: Evaluating Arc-Rated Materials and Their Ratings in Arc Flash Garment

Effective arc flash protection begins with material integrity. Garments must meet both Arc Thermal Performance Value (ATPV) and Breakopen Threshold Energy (EBT) benchmarks–the dual defenses against heat penetration and fabric rupture during an arc event. Independent testing shows materials with ~8 cal/cm² ATPV reduce second-degree burn risks by 92% in faults under 40kA (ASTM F1506-2023).

Evaluating "Arc-Rated Materials and Their Ratings" for Optimal Protection

Manufacturers test materials against controlled arcs up to 100kA, measuring heat transmission (ATPV) and structural resilience (EBT). Fabrics retaining ~50% weight loss post-exposure demonstrate superior durability, essential for reusable PPE.

The Significance of "Arc Thermal Performance Value (ATPV) and Breakopen Threshold Energy (EBT)"

ATPV indicates the incident energy at which there’s a 50% probability of second-degree burns, while EBT marks when fabric breaks open, exposing skin. Research shows a 40% improvement in safety margin when EBT exceeds ATPV by at least 3 cal/cm².

Comparative Data: ATPV Ratings Across Competing Arc-Rated PPE Brands

EN 61482-1-1 Open Arc Test and EN 61482-1-2 Box Test: Global Benchmarking

The Open Arc Test (EN 61482-1-1) simulates real-world arc exposure, while the Box Test (EN 61482-1-2) evaluates vertical panel resistance. Data from 1,200 test cycles show materials passing both standards experience 58% fewer burn-through incidents than those meeting only one.

Design and Layering Strategies for Enhanced Protection in Arc Flash Garment Systems

Implementing Layering of FR Clothing for Enhanced Protection

Putting on multiple layers of flame resistant clothing actually works as thermal barriers that boost overall protection levels quite a bit. According to data from the National Safety Council's 2023 report, workers wearing layered gear face around 62% fewer chances of getting second degree burns compared to those relying on just one layer. The NFPA 70E standard in Annex M backs this up too, showing how when layers are worn correctly together, they can dramatically raise the arc rating. What makes this work so well is the air trapped between layers acting like extra insulation against heat moving through convection currents.

Use of Arc-Rated (AR) Clothing and Multi-Layer Systems for Variable Risk Zones

Adaptive layering meets dynamic hazard demands:

• Low-risk zones (8–12 cal/cm²): Base-layer AR shirts (1.2 ATPV) paired with mid-weight outerwear
• High-energy areas (40+ cal/cm²): Three-tier systems including moisture-wicking underlayers, fire-resistant hoods, and arc-rated coveralls

A 2024 ASTM study showed that combining layers with complementary breakopen threshold energy (EBT) values reduced garment failure by 34% in simulated 480V arc events.

Balancing Comfort, Durability, and Compliance in Daily Wear

Modern arc flash garments meet OSHA 29 CFR 1910.269 without sacrificing wearability:

• Ventilated armpits and articulated knees enhance mobility in tight spaces
• Interlock knit fabrics maintain 98.7% of tensile strength after 100+ industrial washes
• Phase-change cooling liners cut heat stress incidents by 41% (NIOSH 2023)

This balance explains why 78% of linemen in a 2024 IBEW survey reported daily PPE compliance exceeding 95% with next-generation layered systems.

Integrated Protection: Combining arc flash garment with Full PPE Systems

Matching the Garment with Other "types of protective gear (suits, hoods, gloves)"

Getting full protection means putting together arc flash gear with proper hoods, gloves, and those full body suits so there aren't any spots left exposed. A good setup should have flame resistant underlayers too, along with those auto darkening face shields that adjust when needed. Don't forget the insulated boots either since they protect from both heat and electricity at once. Compatibility between all these parts matters a lot actually. We've seen cases where regular zippers or cheap fasteners on otherwise great equipment ended up creating dangerous weak points in the whole outfit. That kind of oversight just defeats the purpose of wearing all this protective stuff in the first place.

Ensuring Full Coverage: Interface Between Garment and Secondary PPE

Safety standards today specify gaps under 6mm between protective gear layers because anything bigger leaves workers vulnerable to extreme heat reaching over 19,000 degrees Celsius according to OSHA guidelines from last year. Many companies now use special overlapping designs that keep coverage intact all the way down from shoulder to wrist area. What's more important though is the extra reinforcement at seams since those are where failures tend to happen when accidents occur. Looking at actual incidents across various industries shows around one quarter of avoidable burn injuries come from mixing different types of PPE that don't work together properly. This has led most serious manufacturers to focus on creating gear that fits and functions as intended right out of the box.

This comprehensive approach aligns with NFPA 70E compliance guidelines requiring coordinated primary and secondary protection layers. Leading programs now conduct quarterly gap audits using thermal imaging to verify full-body coverage in high-risk electrical settings.

FAQ

What is an Arc Flash?

An arc flash is a sudden release of energy caused by an electrical discharge that can reach temperatures over 35,000 degrees Fahrenheit, causing significant harm through shock waves and UV radiation.

Why is flame-resistant clothing important for arc flash protection?

Flame-resistant clothing helps absorb and spread out thermal energy without catching fire, reducing the risk of severe injuries such as burns.

What are PPE categories according to NFPA 70E?

NFPA 70E establishes four PPE categories, each based on incident energy levels, ranging from basic FR shirts and pants (Category 1) to full flash suits and face shields (Category 4).
